The Age of Intelligent Flight

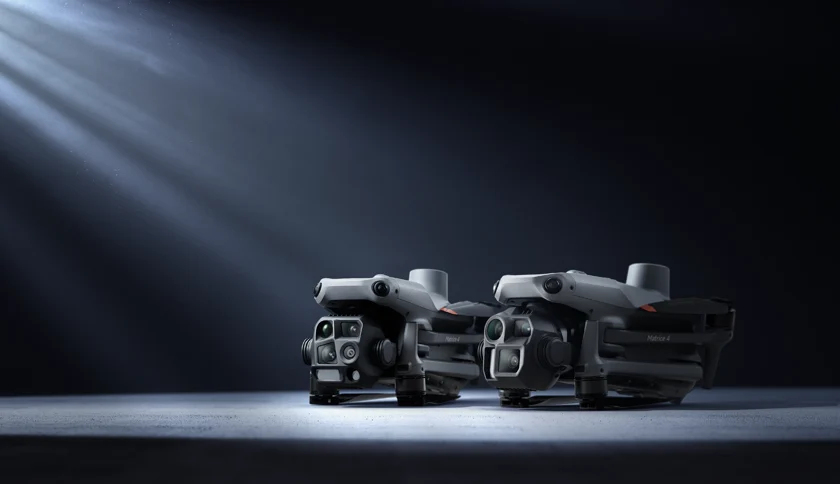

The DJI Matrice 4 Series sets a new standard for enterprise aerial operations by integrating advanced artificial intelligence, enhanced safety features, and unparalleled precision. This compact, multi-sensor drone series offers two powerful models: the Matrice 4T and Matrice 4E. Designed for industries such as public safety, surveying, and construction, the Matrice 4 Series optimizes workflows and ensures professional-grade results. The future of intelligent drone operations starts here.
Key Features of the Matrice 4 Series
The Matrice 4T and Matrice 4E are equipped with state-of-the-art multi-sensor technology to deliver outstanding image quality and data accuracy.
- Matrice 4T: Features a wide-angle camera, medium telephoto, telephoto, an infrared thermal camera for high-resolution thermal imaging, and a laser range finder with an impressive 1,800-meter measurement range—ideal for search and rescue missions.
- Matrice 4E: Tailored for surveying and mapping, featuring a mechanical shutter on its wide-angle camera for ultra-fast 0.5-second interval shooting, significantly enhancing efficiency in geospatial data collection.
| Feature | Matrice 4T | Matrice 4E |
|---|---|---|
|
Wide-Angle Camera |
1/1.3 CMOS 48 MP Effective Pixels f/1.7 Format Equivalent: 24 mm |
4/3 CMOS 20 MP Effective Pixels f/2.8-f/11 Format Equivalent: 24 mm Mechanical Shutter |
|
Medium Tele Camera |
1/1.3 CMOS 48 MP Effective Pixels f/2.8 Format Equivalent: 70 mm |
|
|
Tele Camera |
1/1.5 CMOS 48 MP Effective Pixels f/2.8 Format Equivalent: 168 mm |
|
|
Laser Range Finder |
Measurement Range: 1800 m (1 Hz); Oblique Incidence Range (1:5 Oblique Distance): 600 m (1 Hz) Blind Zone: 1 m; Range Accuracy (m): ± (0.2 + 0.0015 × D) |
|
|
Infrared Thermal Camera |
Resolution 640 × 512 f/1.0 Equivalent Focal Length: 53 mm Uncooled VOx Microbolometer Supports High-Res Mode |
N/A |
|
NIR Auxiliary Light |
FOV: 6° Illumination Distance: 100 m |
N/A |
Intelligent AI-Powered Operations
The DJI Matrice 4 Series is designed with AI-driven operational efficiency, making tasks like search and rescue, infrastructure inspection, and surveillance more effective than ever:
- AI detection for vehicles, vessels, and search targets
- Model training tools and third-party developer integration
- Real-time target marking and area measurement via laser range finder
- Intelligent cruise control, Smart Track, and POI capabilities
Excel In Low-Light Environments
With enhanced Night Scene Mode, the Matrice 4 Series excels in low-light conditions, providing three night vision modes and superior infrared imaging capabilities.
- NIR Auxiliary Light (Matrice 4T): Extends illumination up to 100 meters
- Infrared High-Res Mode (Matrice 4T): 1280 × 1024 resolution for detailed thermal readings
- Six HD low-light fisheye lenses enhance positioning and obstacle avoidance
Precision Mapping & Surveying Excellence
For surveying and construction, the Matrice 4E revolutionizes geospatial mapping with rapid 0.5-second interval shooting, 3-directional ortho capture, and Smart 3D Capture, which enables real-time model generation. Distortion Correction 2.0 ensures high-precision mapping with minimal pixel distortion.
Innovative Safety and Navigation Systems
The RTK module included in the Matrice 4 Series ensures safe, precise flights even in challenging GPS environments.
- Omnidirectional Obstacle Sensing: Prevents collisions for safer flights
- Intelligent Path Planning: Adapts routes around rough terrain
- Advanced Return-to-Home (RTH): Operates even in GNSS-deprived conditions
Next-Generation Video Transmission
- 25 km transmission range
- 20 MB/s download bandwidth
- 4G connectivity with the optional DJI Cellular Dongle 2
Efficient Accessory Ecosystem
- DJI AL1 Spotlight: Illuminates subjects up to 100 meters away
- DJI AS1 Speaker: Broadcasts messages up to 300 meters, reaching 114 dB
- D-RTK 3 Multifunctional Station: Provides centimeter-level positioning accuracy
Seamless Software Integration
- DJI Pilot 2: Enhances mission planning with AI-driven route optimization
- DJI Terra: Supports high-precision mapping and PPK processing
- DJI FlightHub 2: Enables remote operations, multi-drone management, and real-time livestreaming
- DTAT 3.0: Advanced thermal analysis tool for detecting temperature anomalies
Elevate Your Operations with the Matrice 4 Series
Whether you’re conducting search-and-rescue operations, surveying construction sites, or inspecting critical infrastructure, the DJI Matrice 4 Series delivers unmatched intelligence, efficiency, and safety.
