DJI AP100 Parachute: An Added Layer of Safety for Matrice 400 Operations

DJI AP100 Parachute: An Added Layer of Safety for Matrice 400 Operations

September 18, 2026 – Enterprise drone operations require more than powerful aircraft and advanced payloads. When drones operate near people, infrastructure or valuable assets, the safety system supporting the aircraft becomes just as important.

Designed specifically for the DJI Matrice 400, the DJI AP100 Parachute adds an emergency safety layer that helps reduce the aircraft’s descent speed if a serious in-flight problem occurs.



What is the DJI AP100 Parachute?

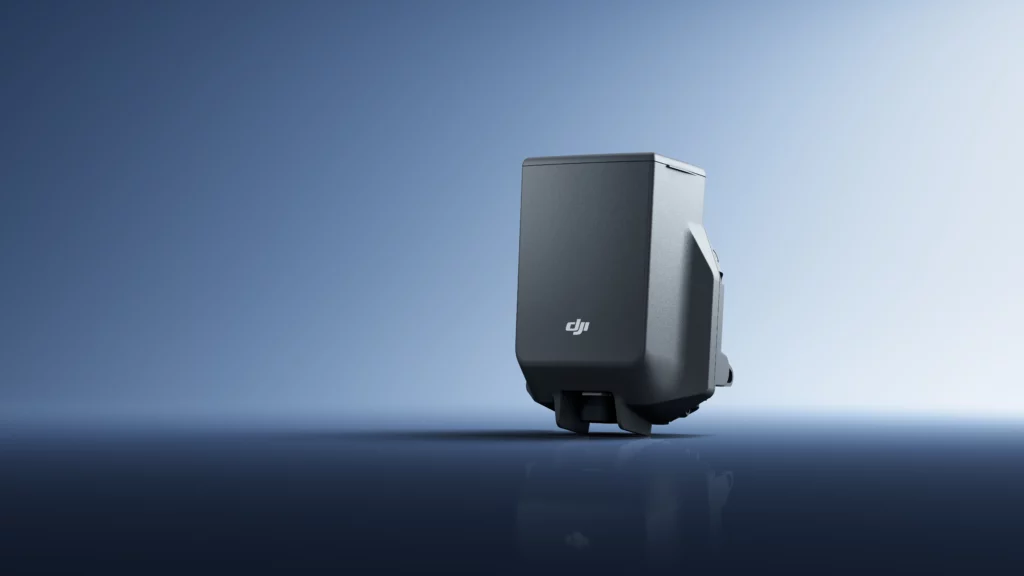

The DJI AP100 Parachute is an emergency recovery system developed for the Matrice 400.

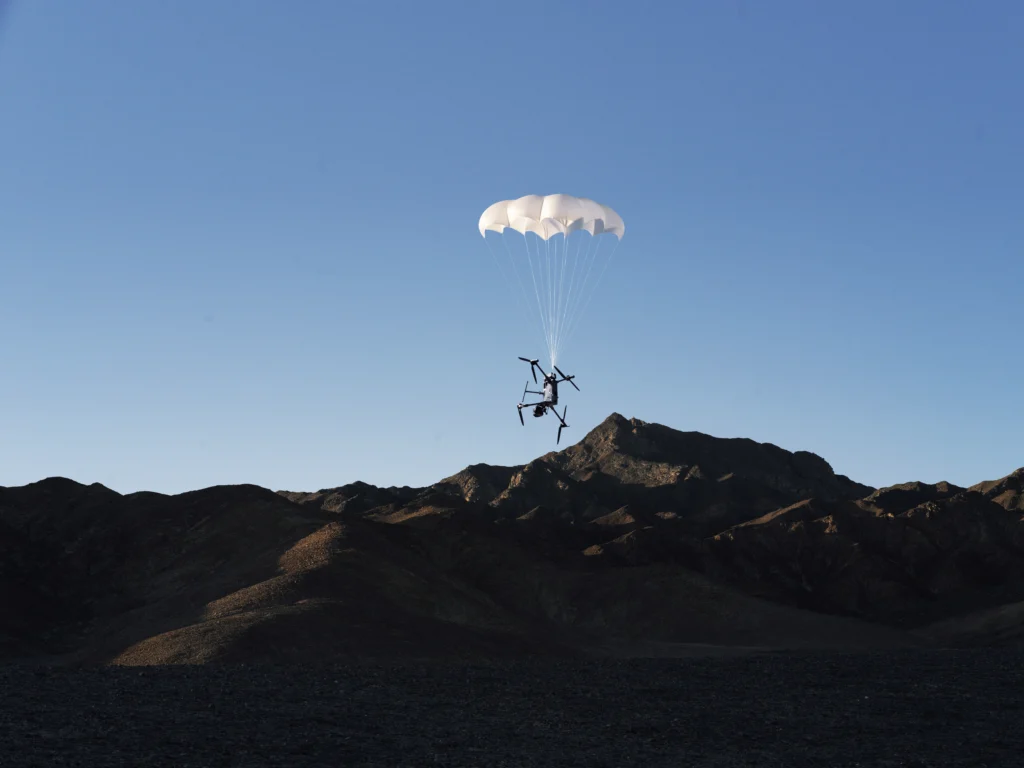

It supports automatic and manual deployment, independent backup power and continuous system checks. If certain abnormal flight conditions are detected, the system can stop the rotors and deploy its nylon canopy to slow the aircraft’s descent.

At an effective deployment height of at least 30 metres, DJI specifies a stabilised descent rate of 5 m/s or less under its stated test conditions.

The AP100 is designed to reduce risk to the aircraft, its payload and the area below. However, it remains a supplementary safety device and cannot guarantee complete protection against damage, property loss or injury.

Automatic and Manual Deployment

The AP100 can deploy automatically when the aircraft or parachute sensors detect abnormal flight data, such as an unusual pitch or roll angle or an abnormal descent speed.

The remote pilot can also manually deploy the parachute using the on-screen control in DJI Pilot 2.

DJI specifies an automatic deployment response time of 600 milliseconds or less under laboratory conditions. Automatic deployment is disabled in certain close-range conditions around the Home Point, which means pilots must understand the system’s operating conditions before every flight.



Independent Backup Systems

The AP100 includes independent control and rotor-stop links, as well as backup power that can operate for approximately one hour when fully charged.

The parachute also continuously monitors its gas generator and communication links. If the system detects a problem, a warning appears through the Health Management System in DJI Pilot 2.

These checks help make the AP100 part of a repeatable pre-flight safety process rather than an accessory that is simply fitted and forgotten.

DJI AP100 Key Specifications

Compatible aircraft: DJI Matrice 400

Dimensions: 182 × 171 × 157 mm, including the bracket

Weight: Approximately 935 g, including the bracket

Maximum supported take-off weight: 15.8 kg

Effective deployment height: 30 m or higher

Stabilised descent rate: 5 m/s or less under DJI test conditions

Automatic deployment response time: 600 ms or less under laboratory conditions

Operating temperature: -20°C to 50°C

Operating altitude: 0 to 4,500 m

Ingress protection: IP55

Backup power duration: Approximately one hour when fully charged

Important Operating Considerations

When the AP100 is installed, the Matrice 400 automatically disables its downward and backward mmWave radars. This keeps the parachute’s deployment path clear and helps prevent false obstacle-sensing triggers.

As a result, the aircraft’s ability to detect small obstacles in these directions is limited. Pilots must consider this when planning routes and maintaining safe obstacle clearance.

The total take-off weight of the aircraft, including its payload and accessories, must also remain within the AP100’s supported limit of 15.8 kg.

The AP100 is a single-use safety device. Once it has deployed, the complete unit must be replaced. DJI also recommends retiring and replacing the product three years after activation, even if its self-checks continue to report normal operation.

Supporting Safer Enterprise Drone Operations

The AP100 can strengthen risk controls for Matrice 400 operations across:

• Public safety and emergency response
• Powerline and utility inspections
• Mining and industrial operations
• Infrastructure and construction inspections
• Surveying and mapping
• Large-area asset monitoring

Its purpose is not to make an operation risk-free. It provides an additional response layer when prevention, aircraft redundancy and pilot intervention are no longer enough.

South African Compliance

DJI states that the AP100 supports specific European C5/C6 and United Kingdom UK5/UK6 operating requirements when used in the relevant configurations. These classifications do not automatically apply to South African operations.

Drone operations in South Africa remain subject to the applicable South African Civil Aviation Authority requirements, operational approvals, aircraft configuration and pilot responsibilities.

The AP100 may support an organisation’s safety planning and risk controls, but it does not replace legal compliance, responsible flight planning or safe operating procedures.

Speak to Yaw Drones

Yaw Drones supplies DJI Enterprise solutions for organisations that need more than a product specification. We help clients understand how the aircraft, payload, accessories and operating requirements work together.

If you are considering the DJI AP100 Parachute or planning a DJI Matrice 400 solution in South Africa, contact Yaw Drones to discuss the correct configuration for your operation or request a quotation.
